Diffraction project datasets NB7852A_3e5d

  • Method: SAD
  • Resolution: 2.7 Å
  • Space group: I 21 3
Download all images (2.7 GB)

PDB website for 3E5D

doi:10.18430/M33E5D

Project details

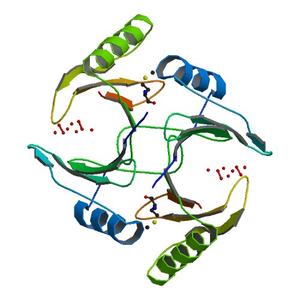

Title Crystal structure of a putative glyoxalase i (lmof2365_0426) from listeria monocytogenes str. 4b f2365 at 2.70 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 123.59 x 123.59 x 123.59
Unit cell angles [°] 90.0, 90.0, 90.0

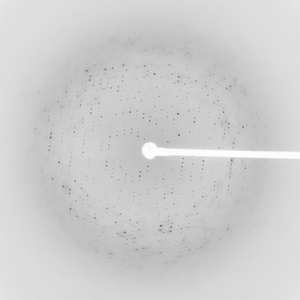

Dataset 86571_1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 85.0
Wavelength [Å] 0.97854
Experiment Date 2008-05-27
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

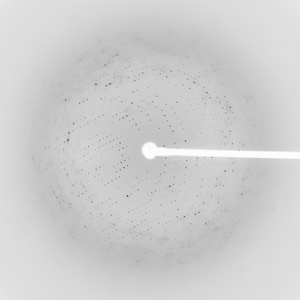

Dataset 86571_2_###.mccd details

Number of frames 45 (1 - 45)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 175.0
Wavelength [Å] 0.97854
Experiment Date 2008-05-27
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
