Diffraction project datasets NB7805A_3ct8

  • Method: MAD
  • Resolution: 2.1 Å
  • Space group: P 41 21 2
Download all images (3.1 GB)

PDB website for 3CT8
PDB validation report for 3CT8

doi:10.18430/M33CT8

Project details

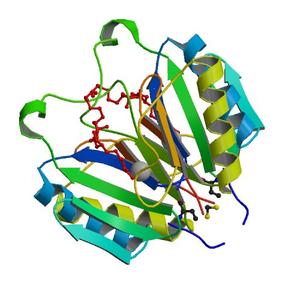

Title Crystal structure of a putative glyoxalase (NP_243026.1) from Bacillus halodurans at 2.10 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.22 / 0.25
Unit cell edges [Å] 51.38 x 51.38 x 116.47
Unit cell angles [°] 90.0, 90.0, 90.0

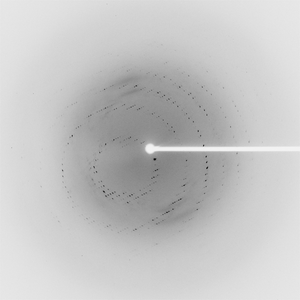

Dataset 76161_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 290.0
Oscillation width [°] 1.00
Phi [°] 166.0
Wavelength [Å] 0.97922
Experiment Date 2008-02-04
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

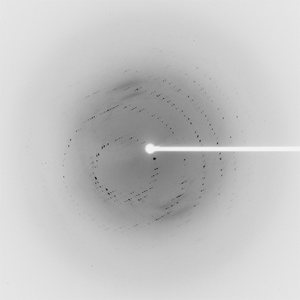

Dataset 76161_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 290.0
Oscillation width [°] 1.00
Phi [°] 166.0
Wavelength [Å] 0.92522
Experiment Date 2008-02-04
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

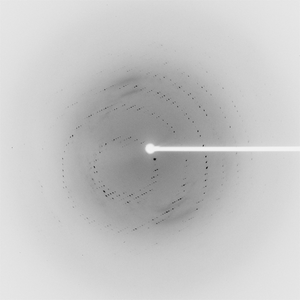

Dataset 76161_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 290.0
Oscillation width [°] 1.00
Phi [°] 166.0
Wavelength [Å] 0.97464
Experiment Date 2008-02-04
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
