Diffraction project datasets NB7795A_3dmc

  • Method: SAD
  • Resolution: 1.65 Å
  • Space group: P 1
Download all images (4.9 GB)

PDB website for 3DMC

doi:10.18430/M33DMC

Project details

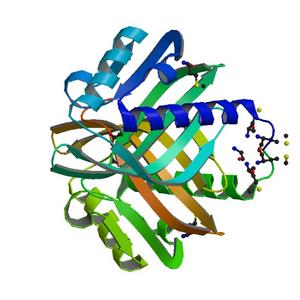

Title CRYSTAL STRUCTURE OF A NTF2-LIKE PROTEIN (AVA_2261) FROM ANABAENA VARIABILIS ATCC 29413 AT 1.65 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 37.78 x 42.14 x 46.34
Unit cell angles [°] 88.0, 65.8, 83.7

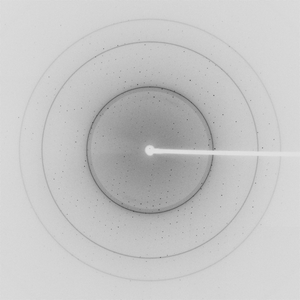

Dataset 86688_1_###.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 221.0
Wavelength [Å] 0.97854
Experiment Date 2008-05-27
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

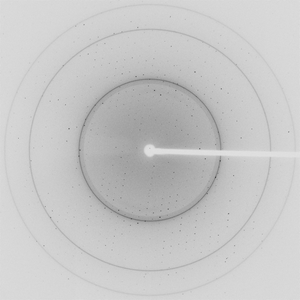

Dataset 86688_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 221.0
Wavelength [Å] 0.91837
Experiment Date 2008-05-27
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
