Diffraction project datasets MyulA_01062_a_B13-sddc0001913-tP_7km9
- Resolution: 1.95 Å
- Space group: P 41 2 2
PDB website for 7KM9
doi:10.18430/m37km9
Project details

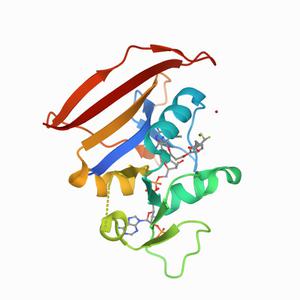

| Title | Crystal Structure of Dihydrofolate reductase (DHFR) from Mycobacterium ulcerans Agy99 in complex with NADP and inhibitor SDDC-0001913, tetragonal crystal from |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.18 / 0.21 |
| Unit cell edges [Å] | 58.97 x 58.97 x 130.34 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

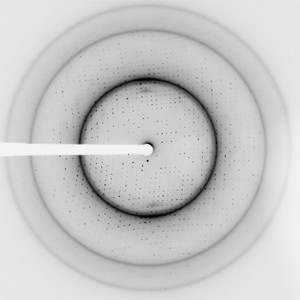

Dataset poq5-9.### details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 30.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2020-10-22 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
