Diffraction project datasets MyulA_01062_a_B13-sddc-0001580_7ki8
- Resolution: 1.25 Å
- Space group: P 1 21 1
PDB website for 7KI8
PDB validation report for 7KI8
doi:10.18430/m37ki8
Project details
| Title | Crystal Structure of Dihydrofolate reductase (DHFR) from Mycobacterium ulcerans Agy99 in complex with NADP and inhibitor SDDC-0001580 |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.13 / 0.16 |
| Unit cell edges [Å] | 29.46 x 70.86 x 36.16 |
| Unit cell angles [°] | 90.0, 111.4, 90.0 |

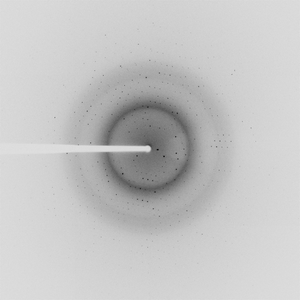

Dataset ucx6-1.### details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 150.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 30.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2020-10-01 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
