Diffraction project datasets MyulA_01062_a_B11-sddc0001914-tP_7km7
- Resolution: 1.8 Å
- Space group: P 41 2 2
PDB website for 7KM7
PDB validation report for 7KM7
doi:10.18430/m37km7
Project details

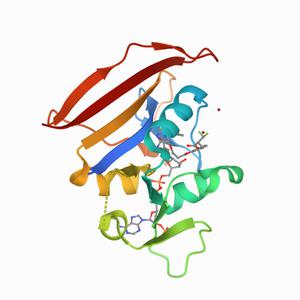

| Title | Crystal Structure of Dihydrofolate reductase (DHFR) from Mycobacterium ulcerans Agy99 in complex with NADP and inhibitor SDDC-0001914, tetragonal crystal from |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.18 / 0.21 |
| Unit cell edges [Å] | 59.13 x 59.13 x 129.49 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

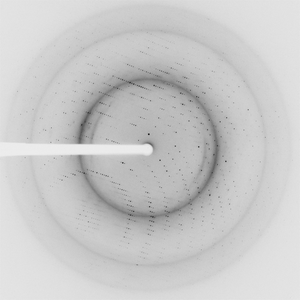

Dataset poq5-1.### details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 30.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2020-10-22 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
