Diffraction project datasets MytuD_00149_b_B1_7l9u
- Resolution: 1.55 Å
- Space group: P 32 2 1
PDB website for 7L9U
PDB validation report for 7L9U
doi:10.18430/m37l9u
Project details
| Title | Crystal Structure of S-adenosylmethionine-dependent methyltransferase UmaA from Mycobacterium tuberculosis in complex with a 12-mer PEG |
| Authors | Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.16 / 0.18 |
| Unit cell edges [Å] | 103.02 x 103.02 x 49.76 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

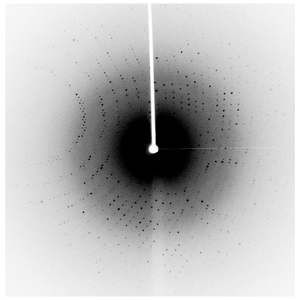

Dataset 318925c9_x_####.img details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -90.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |

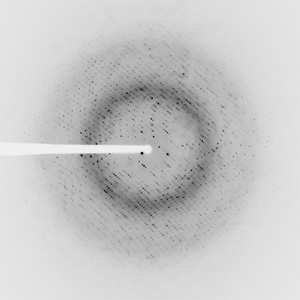

Dataset ynm8-4.### details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 100.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2020-12-10 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
