Diffraction project datasets MykaA_20209_a_B11-Zn_6tyj
- Resolution: 1.6 Å
- Space group: P 31 2 1
PDB website for 6TYJ
doi:10.18430/m36tyj
Project details

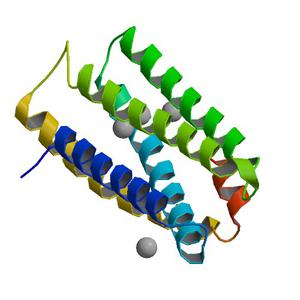

| Title | Crystal structure of zinc-bound Hemerythrin HHE cation binding domain-containing protein (soak): Rv2633c homolog from Mycobacterium kansasii |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.18 / 0.21 |
| Unit cell edges [Å] | 52.23 x 52.23 x 104.65 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

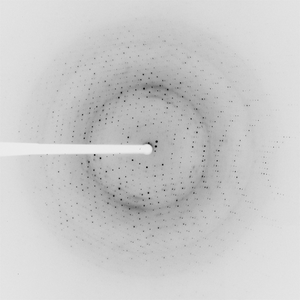

Dataset ybd7-6.### details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 225.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 70.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2019-07-25 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
