Diffraction project datasets MykaA_20209_a_B11-Fe_6q09
- Resolution: 1.75 Å
- Space group: P 31 2 1
PDB website for 6Q09
PDB validation report for 6Q09
doi:10.18430/m36q09
Project details

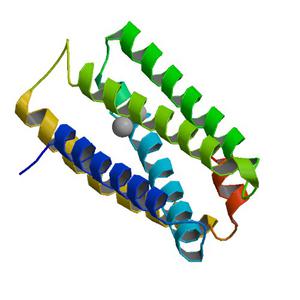

| Title | Crystal structure of iron-bound Hemerythrin HHE cation binding domain-containing protein: Rv2633c homolog from Mycobacterium kansasii |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.18 / 0.23 |
| Unit cell edges [Å] | 52.49 x 52.49 x 104.42 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

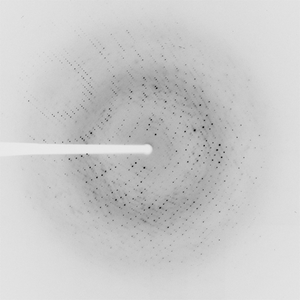

Dataset ybd7-1.### details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 225.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 20.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2019-07-25 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
