Diffraction project datasets MygeA00914aB2_NAD_7jwk
- Resolution: 2.2 Å
- Space group: P 21 21 21
PDB website for 7JWK
PDB validation report for 7JWK
doi:10.18430/m37jwk
Project details

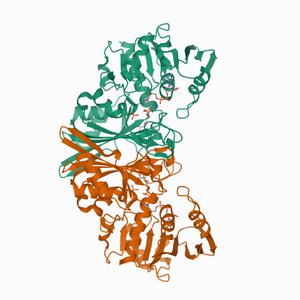

| Title | Crystal Structure of Glyceraldehyde-3-phosphate Dehydrogenase (GAPDH) from Mycoplasma genitalium with bound NAD |
| Authors | Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.16 / 0.20 |
| Unit cell edges [Å] | 91.60 x 94.17 x 172.80 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

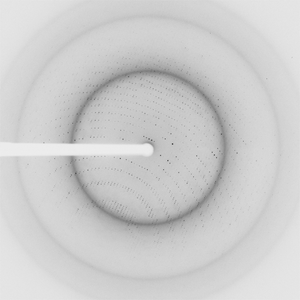

Dataset pvq3-6.### details
| Number of frames | 220 (1 - 220) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 90.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2020-03-19 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
