Diffraction project datasets MyabA_00786_a_AE1_6wwd

  • Resolution: 2.1 Å
  • Space group: P 21 21 21
Download all images (2.2 GB)

PDB website for 6WWD
PDB validation report for 6WWD

doi:10.18430/m36wwd

Project details

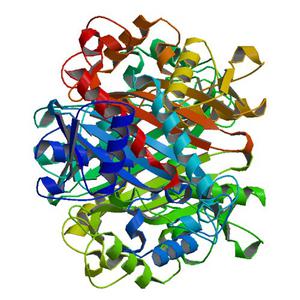

Title Crystal structure of Nucleoside-triphosphatase / dITP/XTP pyrophosphatase from Mycobacterium abscessus ATCC 19977 / DSM 44196
Authors Seattle Structural Genomics Center for Infectious Disease (SSGCID)
R / Rfree 0.19 / 0.24
Unit cell edges [Å] 50.69 x 104.04 x 146.50
Unit cell angles [°] 90.0, 90.0, 90.0

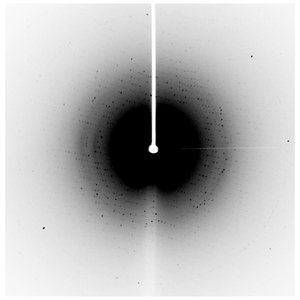

Dataset 315036a2_x####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -90.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

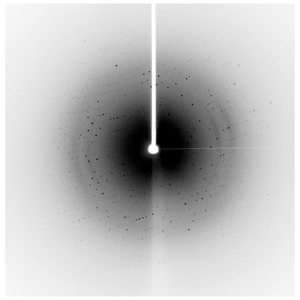

Dataset 315056a2_x_####.img details

Number of frames 720 (1 - 720)
Distance [mm] 55.0
Oscillation width [°] 0.50
Omega [°] -90.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

Dataset 315056a2_y1_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 55.0
Oscillation width [°] 0.50
Omega [°] -90.0
Kappa / Chi [°] 5.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

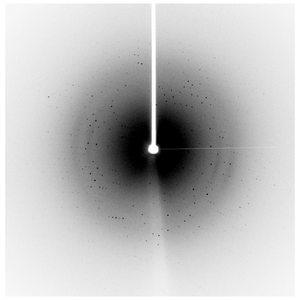

Dataset 315056a2_y2_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 55.0
Oscillation width [°] 0.50
Omega [°] -90.0
Kappa / Chi [°] 5.0
Phi [°] 180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
