Diffraction project datasets MKP5-Y435W-allosteric-inhibitor_9bu4
- Resolution: 2.9 Å
- Space group: P 1
Uniprot website for Q9Y6W6
PDB website for 9BU4
PDB validation report for 9BU4
doi:10.18430/M39BU4
Project details

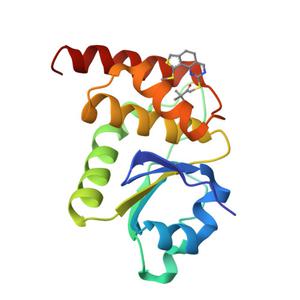

| Title | Crystal structure of an MKP5 mutant, Y435W, in complex with an allosteric inhibitor |
| Authors | Manjula, R., Bennett, A.M., Lolis, E. |
| R / Rfree | 0.22 / 0.27 |
| Unit cell edges [Å] | 55.71 x 55.80 x 275.91 |
| Unit cell angles [°] | 90.4, 93.8, 106.9 |

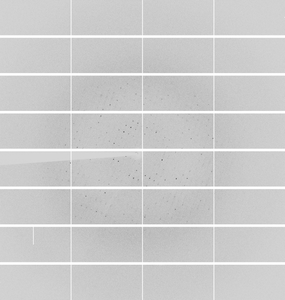

Dataset YW-comp-G1-big-2_2370_master.h5@##### details
| Number of frames | 1900 (1 - 1900) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.20 |
| Wavelength [Å] | 0.97934 |
| Equipment | 17-ID-2 at NSLS (National Synchrotron Light Source) |
