Diffraction project datasets MJ9538A_3op6

  • Method: MAD
  • Resolution: 2.0 Å
  • Space group: P 21 21 21
Download all images (3.6 GB)

PDB website for 3OP6
PDB validation report for 3OP6

doi:10.18430/M33OP6

Project details

Title Crystal structure of an oligo-nucleotide binding protein (lpg1207) from Legionella pneumophila subsp. pneumophila str. philadelphia 1 at 2.00 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.23
Unit cell edges [Å] 54.01 x 63.83 x 84.99
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 147192_1_E1_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 180.0
Wavelength [Å] 0.97927
Experiment Date 2010-01-23
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

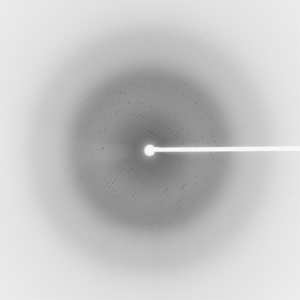

Dataset 147192_1_E2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 180.0
Wavelength [Å] 0.91837
Experiment Date 2010-01-23
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

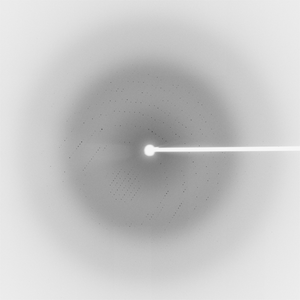

Dataset 147192_2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 180.0
Wavelength [Å] 0.97913
Experiment Date 2010-01-23
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
