Diffraction project datasets MJ9145D_3o14
- Method: MAD
- Resolution: 1.7 Å
- Space group: P 1
PDB website for 3O14
PDB validation report for 3O14
doi:10.18430/M33O14
Project details

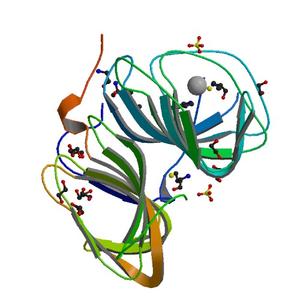

| Title | Crystal structure of an anti-ECFsigma factor, ChrR (Maqu_0586) from MARINOBACTER AQUAEOLEI VT8 at 1.70 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.15 / 0.19 |
| Unit cell edges [Å] | 44.10 x 45.77 x 65.89 |
| Unit cell angles [°] | 76.0, 71.1, 63.4 |

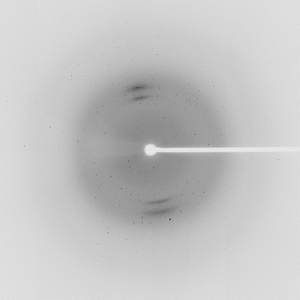

Dataset 153610_1_E1_####.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 39.0 |
| Wavelength [Å] | 0.97936 |
| Experiment Date | 2010-05-13 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

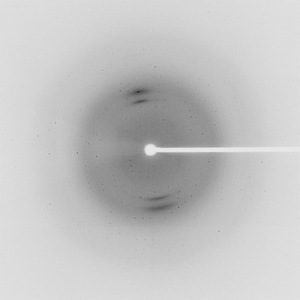

Dataset 153610_1_E2_####.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 39.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2010-05-13 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
