Diffraction project datasets MJ8150A_3mcs

  • Method: MAD
  • Resolution: 2.55 Å
  • Space group: P 1 21 1
Download all images (5.0 GB)

PDB website for 3MCS
PDB validation report for 3MCS

doi:10.18430/M33MCS

Project details

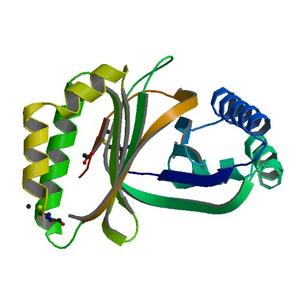

Title Crystal structure of Putative monooxygenase (FN1347) from FUSOBACTERIUM NUCLEATUM SUBSP. NUCLEATUM ATCC 25586 at 2.55 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.21 / 0.26
Unit cell edges [Å] 51.85 x 66.24 x 66.76
Unit cell angles [°] 90.0, 98.4, 90.0

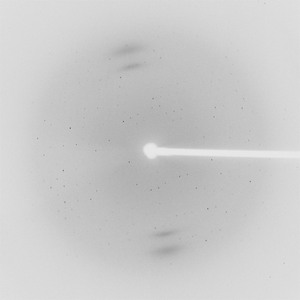

Dataset 143138_1_E1_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 405.0
Oscillation width [°] 1.00
Phi [°] 145.0
Wavelength [Å] 0.97925
Experiment Date 2009-12-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

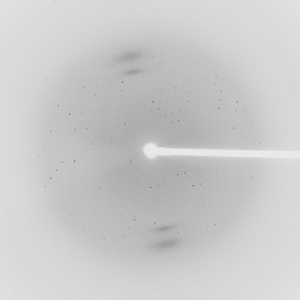

Dataset 143138_1_E2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 405.0
Oscillation width [°] 1.00
Phi [°] 145.0
Wavelength [Å] 0.91837
Experiment Date 2009-12-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

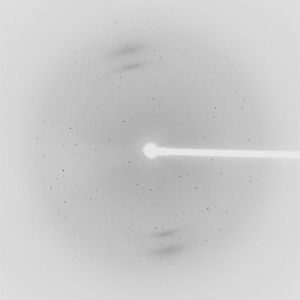

Dataset 143138_2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 405.0
Oscillation width [°] 1.00
Phi [°] 145.0
Wavelength [Å] 0.97894
Experiment Date 2009-12-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
