Diffraction project datasets MJ5232A_3mem
Project details
| Title |

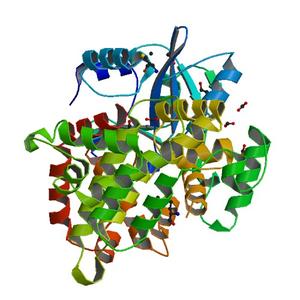

Crystal structure of a Putative signal transduction protein (Maqu_0641) from MARINOBACTER AQUAEOLEI VT8 at 2.25 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.19 / 0.23 |
| Unit cell edges [Å] |
148.67 x
53.07 x
69.56
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

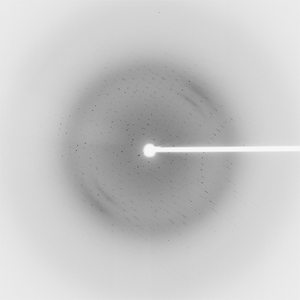

Dataset 139313_1_E1_####.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
301.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
2.0 |
| Wavelength [Å] |
0.97911 |
| Experiment Date |
2010-01-24 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

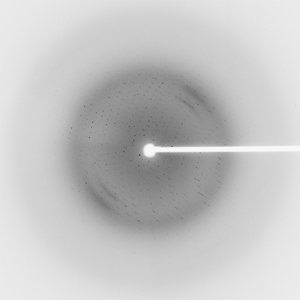

Dataset 139313_1_E2_####.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
301.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
2.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2010-01-24 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

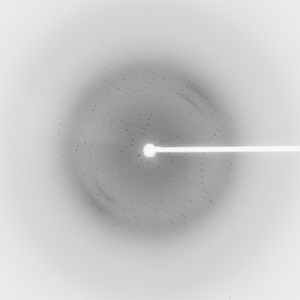

Dataset 139313_2_####.mccd details
| Number of frames |
57 (1 - 57) |
| Distance [mm] |
301.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
2.0 |
| Wavelength [Å] |
0.97893 |
| Experiment Date |
2010-01-24 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
