Diffraction project datasets MJ16252A_3lyg

  • Method: MAD
  • Resolution: 1.61 Å
  • Space group: P 43 21 2
Download all images (2.9 GB)

PDB website for 3LYG
PDB validation report for 3LYG

doi:10.18430/M33LYG

Project details

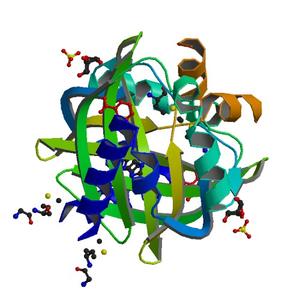

Title Crystal structure of NTF2-like protein of unknown function (YP_270605.1) from Colwellia psychrerythraea 34H at 1.61 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 57.39 x 57.39 x 67.34
Unit cell angles [°] 90.0, 90.0, 90.0

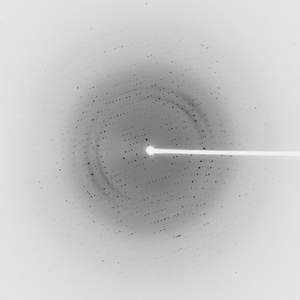

Dataset 142756_1_E1_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 293.0
Wavelength [Å] 0.97925
Experiment Date 2009-12-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

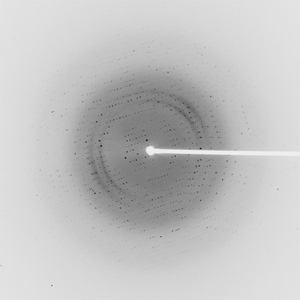

Dataset 142756_1_E2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 293.0
Wavelength [Å] 0.91837
Experiment Date 2009-12-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 142756_2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 293.0
Wavelength [Å] 0.97901
Experiment Date 2009-12-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
