Diffraction project datasets MJ16247B_3myx
Project details
| Title |

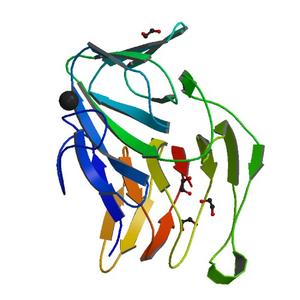

Crystal structure of a PSPTO_0244 (Protein with unknown function which belongs to Pfam DUF861 family) from Pseudomonas syringae pv. tomato str. DC3000 at 1.30 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.12 / 0.15 |
| Unit cell edges [Å] |
57.58 x
48.40 x
80.45
|
| Unit cell angles [°] |
90.0,
108.2,
90.0
|

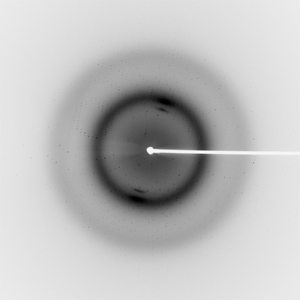

Dataset 143230_1_E1_####.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
260.0 |
| Wavelength [Å] |
0.97913 |
| Experiment Date |
2009-12-03 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

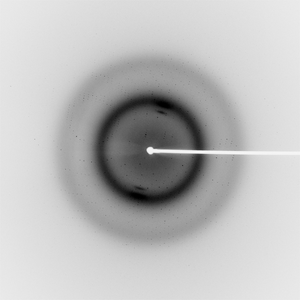

Dataset 143230_1_E2_####.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
260.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2009-12-03 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

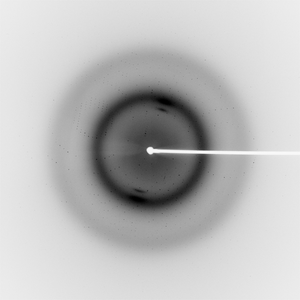

Dataset 143230_2_####.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
260.0 |
| Wavelength [Å] |
0.97879 |
| Experiment Date |
2009-12-03 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
