Diffraction project datasets MJ15805A_3lyh
Project details
| Title |

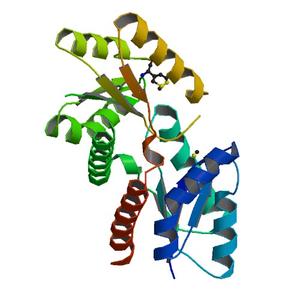

Crystal structure of Putative cobalamin (vitamin B12) biosynthesis CbiX protein (YP_958415.1) from Marinobacter aquaeolei VT8 at 1.60 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.17 / 0.21 |
| Unit cell edges [Å] |
37.84 x
38.62 x
39.85
|
| Unit cell angles [°] |
70.4,
83.1,
72.1
|

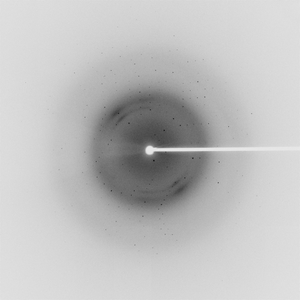

Dataset 144484_1_####.mccd details
| Number of frames |
200 (1 - 200) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
330.0 |
| Wavelength [Å] |
0.97915 |
| Experiment Date |
2010-01-23 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

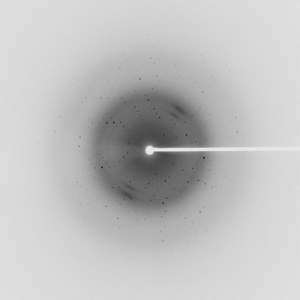

Dataset 144484_2_####.mccd details
| Number of frames |
100 (1 - 100) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
171.0 |
| Wavelength [Å] |
0.97915 |
| Experiment Date |
2010-01-23 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

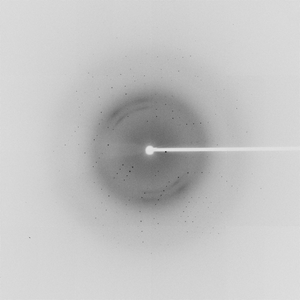

Dataset 144484_3_E1_####.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
153.0 |
| Wavelength [Å] |
0.97903 |
| Experiment Date |
2010-01-25 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

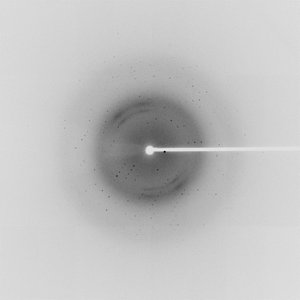

Dataset 144484_3_E2_####.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
153.0 |
| Wavelength [Å] |
0.91162 |
| Experiment Date |
2010-01-25 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
