Diffraction project datasets MJ14477B_3pj0

  • Method: MAD
  • Resolution: 1.8 Å
  • Space group: P 1 21 1
Download all images (4.8 GB)

PDB website for 3PJ0
PDB validation report for 3PJ0

doi:10.18430/M33PJ0

Project details

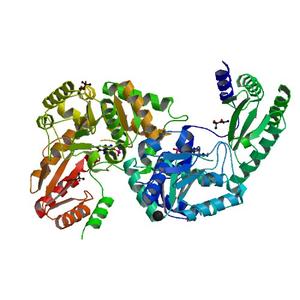

Title Crystal structure of a putative L-allo-threonine aldolase (lmo0305) from Listeria monocytogenes EGD-E at 1.80 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.20
Unit cell edges [Å] 85.59 x 96.64 x 99.48
Unit cell angles [°] 90.0, 110.8, 90.0

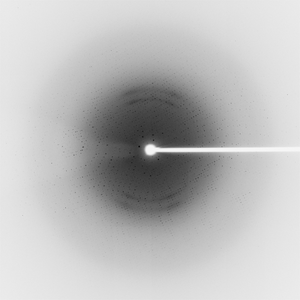

Dataset 153752_1_E1_####.mccd details

Number of frames 125 (1 - 125)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] 287.0
Wavelength [Å] 0.97936
Experiment Date 2010-05-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 153752_1_E2_####.mccd details

Number of frames 125 (1 - 125)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] 287.0
Wavelength [Å] 0.96109
Experiment Date 2010-05-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

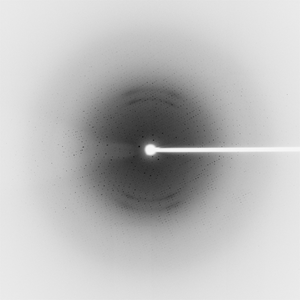

Dataset 153752_2_####.mccd details

Number of frames 125 (1 - 125)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] 287.0
Wavelength [Å] 0.97915
Experiment Date 2010-05-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
