Diffraction project datasets MI9673BF_3ppb

  • Method: SAD
  • Resolution: 2.1 Å
  • Space group: P 21 21 21
Download all images (2.7 GB)

PDB website for 3PPB

doi:10.18430/M33PPB

Project details

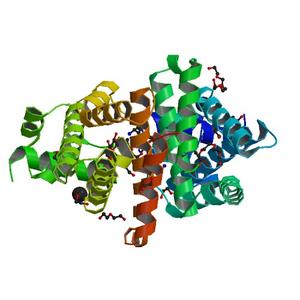

Title Crystal structure of a putative tetR family transcription regulator (Shew_3104) from SHEWANELLA SP. PV-4 at 2.10 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 57.76 x 60.04 x 107.73
Unit cell angles [°] 90.0, 90.0, 90.0

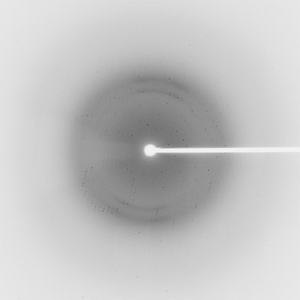

Dataset 137022_1_####.mccd details

Number of frames 240 (1 - 240)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 28.0
Wavelength [Å] 0.97903
Experiment Date 2010-07-22
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
