Diffraction project datasets MI9673AA_3rh2

  • Method: MAD
  • Resolution: 2.42 Å
  • Space group: P 43 21 2
Download all images (6.2 GB)

PDB website for 3RH2
PDB validation report for 3RH2

doi:10.18430/M33RH2

Project details

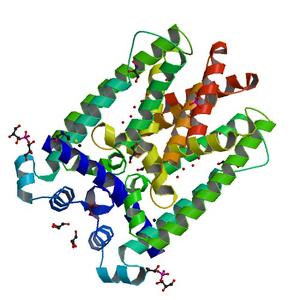

Title Crystal structure of a TetR-like transcriptional regulator (Sama_0099) from Shewanella amazonensis SB2B at 2.42 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.21 / 0.25
Unit cell edges [Å] 123.54 x 123.54 x 49.55
Unit cell angles [°] 90.0, 90.0, 90.0

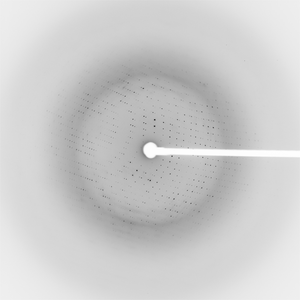

Dataset 138499_1_E1_####.mccd details

Number of frames 130 (1 - 130)
Distance [mm] 300.0
Oscillation width [°] 1.00
Wavelength [Å] 0.97934
Experiment Date 2011-03-09
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

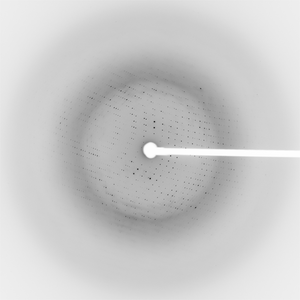

Dataset 138499_1_E2_####.mccd details

Number of frames 130 (1 - 130)
Distance [mm] 300.0
Oscillation width [°] 1.00
Wavelength [Å] 0.91837
Experiment Date 2011-03-09
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

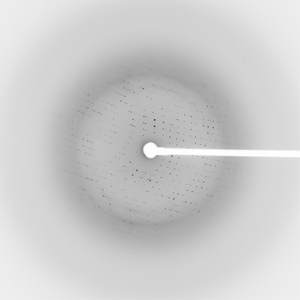

Dataset 138499_2_####.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 300.0
Oscillation width [°] 1.00
Wavelength [Å] 0.97915
Experiment Date 2011-03-09
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
