Diffraction project datasets MI9663A_3s5r
Project details
| Title |

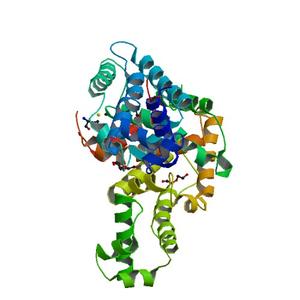

Crystal structure of a putative transcriptional regulator of the TETR family (SYN_02108) from Syntrophus aciditrophicus at 2.60 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.24 / 0.26 |
| Unit cell edges [Å] |
74.43 x
110.72 x
126.03
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

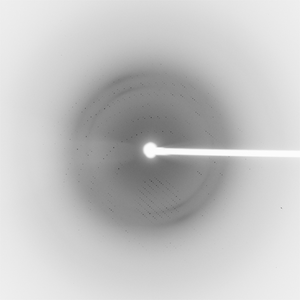

Dataset 138595_1_E1_####.mccd details
| Number of frames |
100 (1 - 100) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
270.0 |
| Wavelength [Å] |
0.97936 |
| Experiment Date |
2011-03-09 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

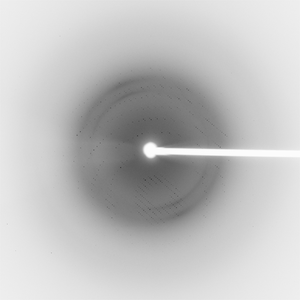

Dataset 138595_1_E2_####.mccd details
| Number of frames |
100 (1 - 100) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
270.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2011-03-09 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

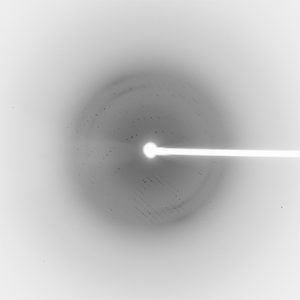

Dataset 138595_2_####.mccd details
| Number of frames |
100 (1 - 100) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
270.0 |
| Wavelength [Å] |
0.97915 |
| Experiment Date |
2011-03-09 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
