Diffraction project datasets MI9424B_3nrg
- Method: MAD
- Resolution: 2.56 Å
- Space group: I 41
PDB website for 3NRG
PDB validation report for 3NRG
doi:10.18430/M33NRG
Project details

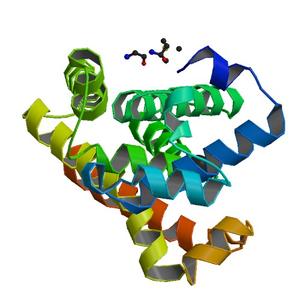

| Title | Crystal structure of a TetR family transcriptional regulator (Caur_2714) from CHLOROFLEXUS AURANTIACUS J-10-FL at 2.56 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.21 / 0.24 |
| Unit cell edges [Å] | 204.93 x 204.93 x 57.22 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

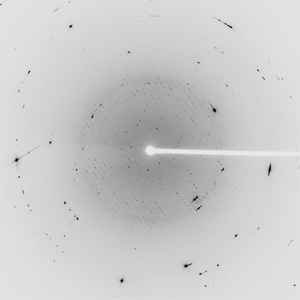

Dataset 150702_1_E1_####.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 230.0 |
| Wavelength [Å] | 0.97951 |
| Experiment Date | 2010-04-08 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

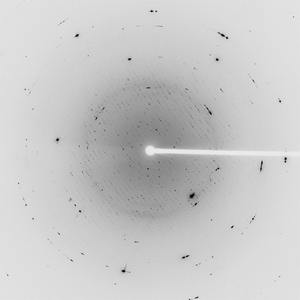

Dataset 150702_1_E2_####.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 230.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2010-04-08 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
