Diffraction project datasets MI4130I_3lhi

  • Method: MAD
  • Resolution: 1.33 Å
  • Space group: P 32 2 1
Download all images (3.4 GB)

PDB website for 3LHI

doi:10.18430/M33LHI

Project details

Title Crystal structure of Putative 6-phosphogluconolactonase(YP_207848.1) from Neisseria gonorrhoeae FA 1090 at 1.33 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.13 / 0.16
Unit cell edges [Å] 63.24 x 63.24 x 106.92
Unit cell angles [°] 90.0, 90.0, 120.0

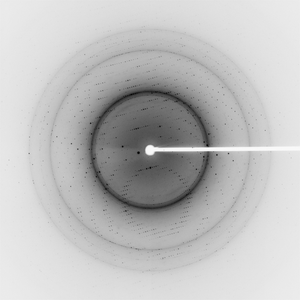

Dataset 139473_1_E1_####.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 150.0
Wavelength [Å] 0.97951
Experiment Date 2009-11-06
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

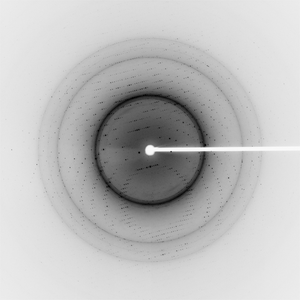

Dataset 139473_1_E2_####.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 150.0
Wavelength [Å] 0.91837
Experiment Date 2009-11-06
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
