Diffraction project datasets MI4130F_3nwp
Project details
| Title |

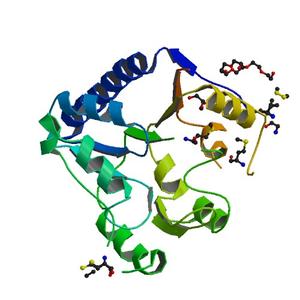

Crystal structure of a 6-phosphogluconolactonase (Sbal_2240) from Shewanella baltica OS155 at 1.40 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.17 / 0.19 |
| Unit cell edges [Å] |
46.18 x
72.02 x
154.13
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

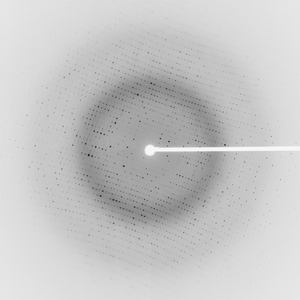

Dataset 138630_1_E1_####.mccd details
| Number of frames |
180 (11 - 190) |
| Distance [mm] |
240.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
73.0 |
| Wavelength [Å] |
0.97951 |
| Experiment Date |
2009-11-06 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

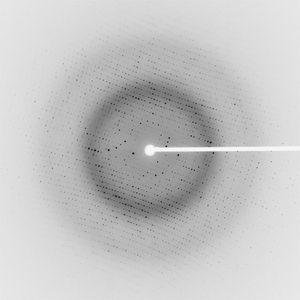

Dataset 138630_1_E2_####.mccd details
| Number of frames |
180 (11 - 190) |
| Distance [mm] |
240.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
73.0 |
| Wavelength [Å] |
0.91162 |
| Experiment Date |
2009-11-06 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

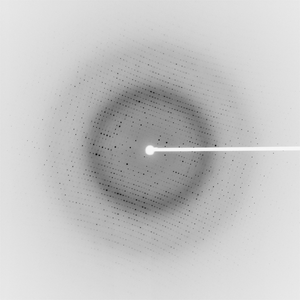

Dataset 138630_2_####.mccd details
| Number of frames |
190 (1 - 190) |
| Distance [mm] |
210.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
73.0 |
| Wavelength [Å] |
0.97936 |
| Experiment Date |
2009-11-06 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

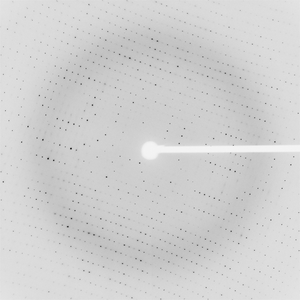

Dataset 138630_3_####.mccd details
| Number of frames |
100 (1 - 100) |
| Distance [mm] |
400.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
73.0 |
| Wavelength [Å] |
0.97936 |
| Experiment Date |
2009-11-06 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
