Diffraction project datasets MI15954C_3p3v

  • Method: MAD
  • Resolution: 1.65 Å
  • Space group: P 1 21 1
Download all images (7.3 GB)

PDB website for 3P3V
PDB validation report for 3P3V

doi:10.18430/M33P3V

Project details

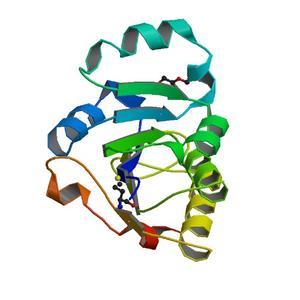

Title Crystal structure of a PTS dependent N-acetyl-galactosamine-IIB component (agaV, SPy_0631) from Streptococcus pyogenes at 1.65 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 42.14 x 80.70 x 47.21
Unit cell angles [°] 90.0, 105.3, 90.0

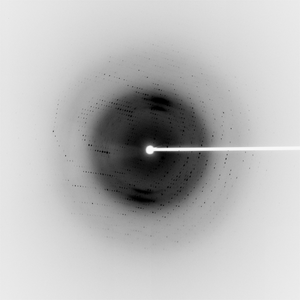

Dataset 150864_1_E1_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 83.0
Wavelength [Å] 0.97934
Experiment Date 2010-03-11
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

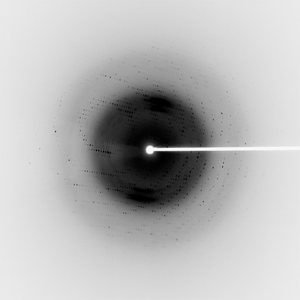

Dataset 150864_1_E2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 83.0
Wavelength [Å] 0.96109
Experiment Date 2010-03-11
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 150864_2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 83.0
Wavelength [Å] 0.97920
Experiment Date 2010-03-11
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
