Diffraction project datasets MI15905D_3nre

  • Method: MAD
  • Resolution: 1.59 Å
  • Space group: C 1 2 1
Download all images (29.9 GB)

PDB website for 3NRE
PDB validation report for 3NRE

doi:10.18430/M33NRE

Project details

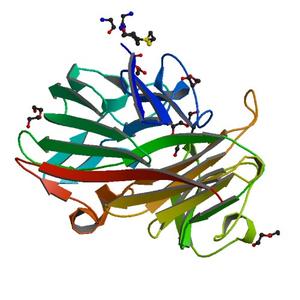

Title Crystal structure of a Putative aldose 1-epimerase (b2544) from ESCHERICHIA COLI K12 at 1.59 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 73.73 x 72.00 x 272.79
Unit cell angles [°] 90.0, 90.7, 90.0

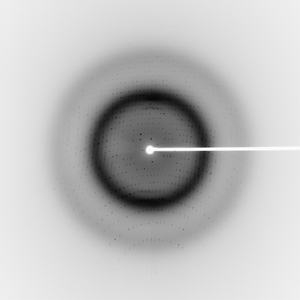

Dataset 150832_1_E1_####.mccd details

Number of frames 700 (1 - 700)
Distance [mm] 200.0
Oscillation width [°] 0.20
Phi [°] 95.0
Wavelength [Å] 0.97936
Experiment Date 2010-03-10
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

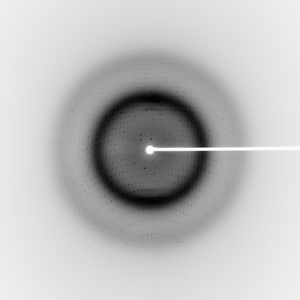

Dataset 150832_1_E2_####.mccd details

Number of frames 700 (1 - 700)
Distance [mm] 200.0
Oscillation width [°] 0.20
Phi [°] 95.0
Wavelength [Å] 0.95369
Experiment Date 2010-03-10
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

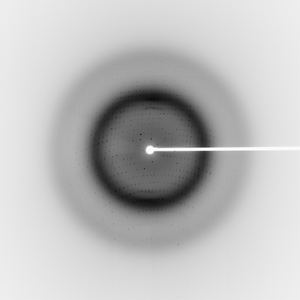

Dataset 150832_2_####.mccd details

Number of frames 650 (1 - 650)
Distance [mm] 200.0
Oscillation width [°] 0.20
Phi [°] 95.0
Wavelength [Å] 0.97920
Experiment Date 2010-03-10
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
