Diffraction project datasets MI15887P_3on7

  • Method: MAD
  • Resolution: 2.2 Å
  • Space group: P 21 21 21
Download all images (3.6 GB)

PDB website for 3ON7
PDB validation report for 3ON7

doi:10.18430/M33ON7

Project details

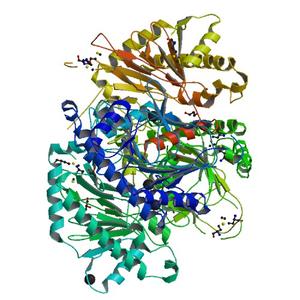

Title Crystal structure of a Putative oxygenase (SO_2589) from Shewanella oneidensis at 2.20 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.24
Unit cell edges [Å] 65.19 x 95.68 x 184.49
Unit cell angles [°] 90.0, 90.0, 90.0

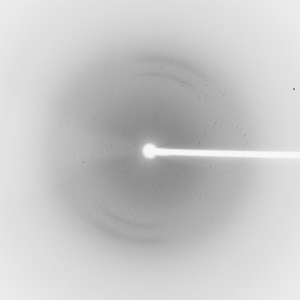

Dataset 149187_1_E1_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 360.0
Oscillation width [°] 1.00
Phi [°] 51.0
Wavelength [Å] 0.97963
Experiment Date 2010-02-11
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

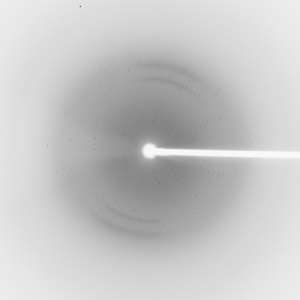

Dataset 149187_1_E2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 360.0
Oscillation width [°] 1.00
Phi [°] 51.0
Wavelength [Å] 0.91837
Experiment Date 2010-02-11
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

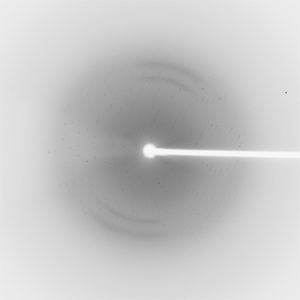

Dataset 149187_2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 340.0
Oscillation width [°] 1.00
Phi [°] 51.0
Wavelength [Å] 0.97916
Experiment Date 2010-02-11
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
