Diffraction project datasets MI15755X_3mw8
Project details
| Title |

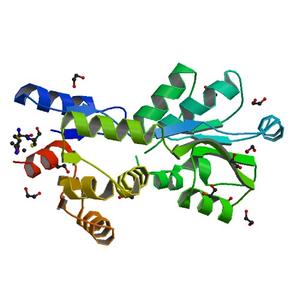

Crystal structure of an UROPORPHYRINOGEN-III SYNTHASE (Sama_3255) from SHEWANELLA AMAZONENSIS SB2B at 1.65 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.18 / 0.20 |
| Unit cell edges [Å] |
51.39 x
50.07 x
58.26
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|
Dataset 150138_1_E1_####.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
220.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
337.0 |
| Wavelength [Å] |
0.97941 |
| Experiment Date |
2010-03-11 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

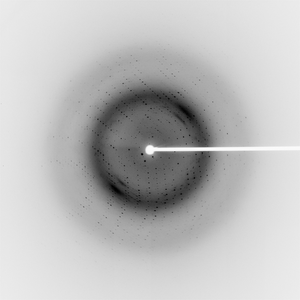

Dataset 150138_1_E2_####.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
220.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
337.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2010-03-11 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

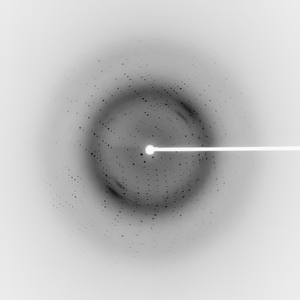

Dataset 150138_2_####.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
220.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
337.0 |
| Wavelength [Å] |
0.97927 |
| Experiment Date |
2010-03-11 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

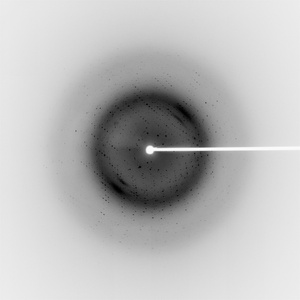

Dataset 150138_3_E1_####.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
107.0 |
| Wavelength [Å] |
0.97936 |
| Experiment Date |
2010-03-11 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

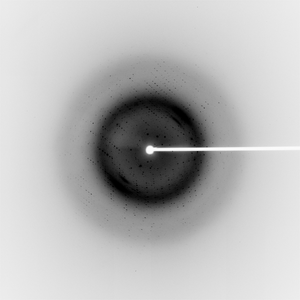

Dataset 150138_3_E2_####.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
107.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2010-03-11 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
