Diffraction project datasets MI15740X_3n0q

  • Method: MAD
  • Resolution: 1.8 Å
  • Space group: P 63
Download all images (4.5 GB)

PDB website for 3N0Q
PDB validation report for 3N0Q

doi:10.18430/M33N0Q

Project details

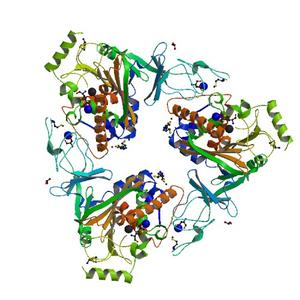

Title Crystal structure of a Putative aromatic-ring hydroxylating dioxygenase (TM1040_3219) from SILICIBACTER SP. TM1040 at 1.80 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.19
Unit cell edges [Å] 97.53 x 97.53 x 96.52
Unit cell angles [°] 90.0, 90.0, 120.0

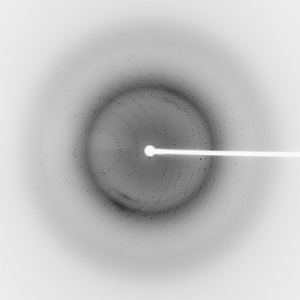

Dataset 149178_1_E1_####.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 220.0
Wavelength [Å] 0.97949
Experiment Date 2010-02-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

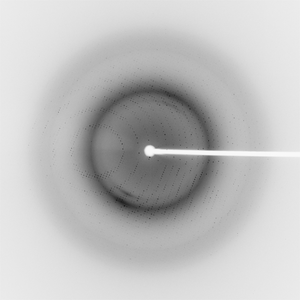

Dataset 149178_1_E2_####.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 220.0
Wavelength [Å] 0.91837
Experiment Date 2010-02-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

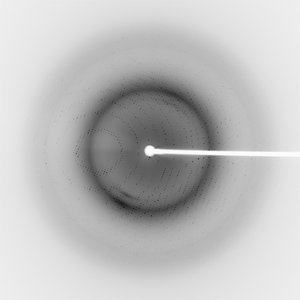

Dataset 149178_2_####.mccd details

Number of frames 80 (1 - 80)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] 220.0
Wavelength [Å] 0.97895
Experiment Date 2010-02-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
