Diffraction project datasets MI0968C_3oqp

  • Method: MAD
  • Resolution: 1.22 Å
  • Space group: P 1 21 1
Download all images (12.4 GB)

PDB website for 3OQP
PDB validation report for 3OQP

doi:10.18430/M33OQP

Project details

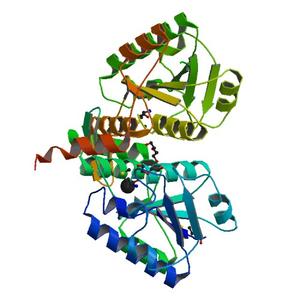

Title Crystal structure of a putative isochorismatase (Bxe_A0706) from BURKHOLDERIA XENOVORANS LB400 at 1.22 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.14 / 0.17
Unit cell edges [Å] 37.37 x 103.14 x 45.06
Unit cell angles [°] 90.0, 98.9, 90.0

Dataset 148396_1_E1_####.mccd details

Number of frames 280 (1 - 280)
Distance [mm] 150.0
Oscillation width [°] 0.50
Phi [°] 180.0
Wavelength [Å] 0.97937
Experiment Date 2010-02-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

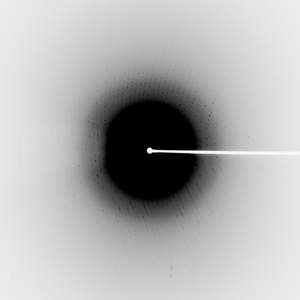

Dataset 148396_1_E2_####.mccd details

Number of frames 280 (1 - 280)
Distance [mm] 150.0
Oscillation width [°] 0.50
Phi [°] 180.0
Wavelength [Å] 0.91837
Experiment Date 2010-02-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

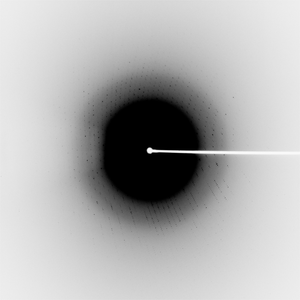

Dataset 148396_2_####.mccd details

Number of frames 280 (1 - 280)
Distance [mm] 150.0
Oscillation width [°] 0.50
Phi [°] 180.0
Wavelength [Å] 0.97898
Experiment Date 2010-02-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
