Diffraction project datasets MH9105A_3lm2

  • Method: MAD
  • Resolution: 1.7 Å
  • Space group: P 1
Download all images (7.3 GB)

PDB website for 3LM2
PDB validation report for 3LM2

doi:10.18430/M33LM2

Project details

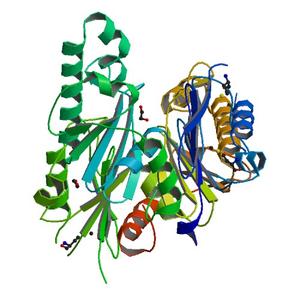

Title Crystal structure of Putative kinase. (17743352) from AGROBACTERIUM TUMEFACIENS str. C58 (Dupont) at 1.70 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 47.91 x 49.60 x 57.33
Unit cell angles [°] 98.0, 104.6, 110.0

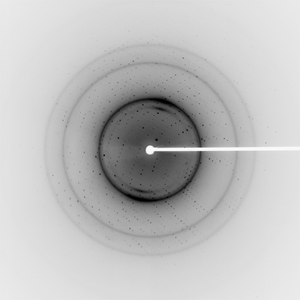

Dataset 133954_1_E1_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 149.0
Wavelength [Å] 0.97949
Experiment Date 2009-11-07
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 133954_1_E2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 149.0
Wavelength [Å] 0.96109
Experiment Date 2009-11-07
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

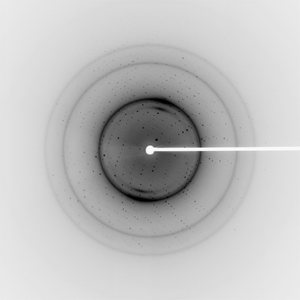

Dataset 133954_2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 149.0
Wavelength [Å] 0.97936
Experiment Date 2009-11-07
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
