Diffraction project datasets MH7544A_3i7a

  • Method: MAD
  • Resolution: 2.06 Å
  • Space group: P 41
Download all images (3.3 GB)

PDB website for 3I7A
PDB validation report for 3I7A

doi:10.18430/M33I7A

Project details

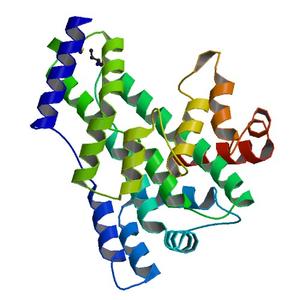

Title Crystal structure of Putative metal-dependent phosphohydrolase (YP_926882.1) from Shewanella amazonensis SB2B at 2.06 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.24
Unit cell edges [Å] 76.63 x 76.63 x 57.78
Unit cell angles [°] 90.0, 90.0, 90.0

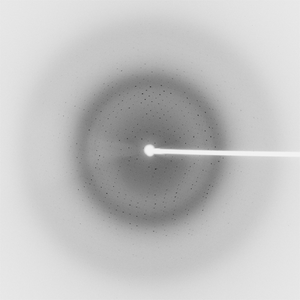

Dataset 119173_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 202.0
Wavelength [Å] 0.97839
Experiment Date 2009-04-16
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

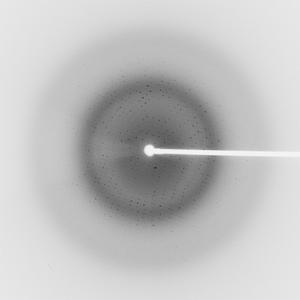

Dataset 119173_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 202.0
Wavelength [Å] 0.91162
Experiment Date 2009-04-16
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

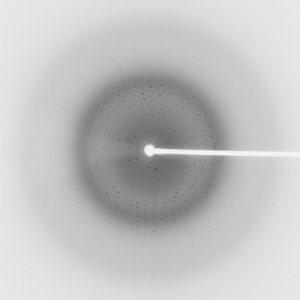

Dataset 119173_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 202.0
Wavelength [Å] 0.97799
Experiment Date 2009-04-16
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
