Diffraction project datasets MH7531D_3m1t
Project details
| Title |

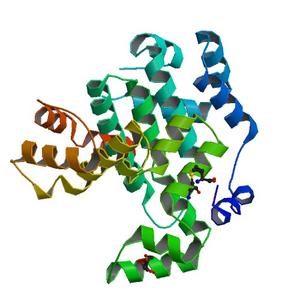

Crystal structure of Putative phosphohydrolase (YP_929327.1) from Shewanella amazonensis SB2B at 1.62 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.18 / 0.20 |
| Unit cell edges [Å] |
69.73 x
69.73 x
124.57
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

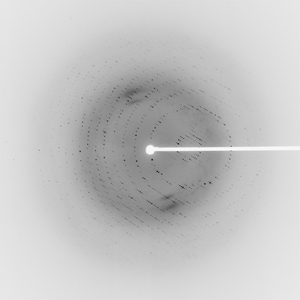

Dataset 121698_1_E1_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
240.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
161.0 |
| Wavelength [Å] |
0.97936 |
| Experiment Date |
2009-05-13 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

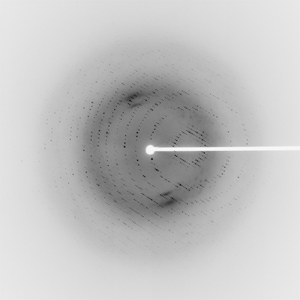

Dataset 121698_1_E2_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
240.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
161.0 |
| Wavelength [Å] |
0.91162 |
| Experiment Date |
2009-05-13 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

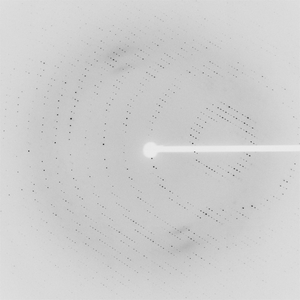

Dataset 121698_2_###.mccd details
| Number of frames |
60 (1 - 60) |
| Distance [mm] |
440.0 |
| Oscillation width [°] |
2.00 |
| Phi [°] |
161.0 |
| Wavelength [Å] |
0.91162 |
| Experiment Date |
2009-05-13 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

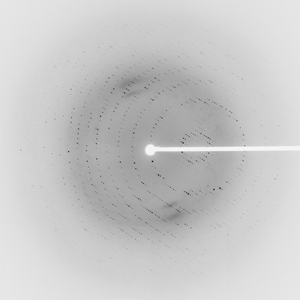

Dataset 121698_3_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
161.0 |
| Wavelength [Å] |
0.97925 |
| Experiment Date |
2009-05-13 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
