Diffraction project datasets MH7306G_3ky8

  • Method: MAD
  • Resolution: 2.12 Å
  • Space group: P 43 21 2
Download all images (3.2 GB)

PDB website for 3KY8
PDB validation report for 3KY8

doi:10.18430/M33KY8

Project details

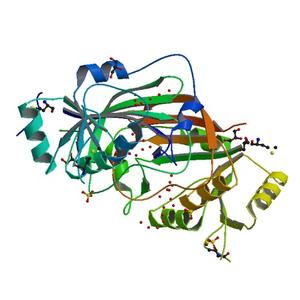

Title Crystal structure of Putative riboflavin biosynthesis protein (YP_001092907.1) from SHEWANELLA SP. PV-4 at 2.12 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.23
Unit cell edges [Å] 72.68 x 72.68 x 156.97
Unit cell angles [°] 90.0, 90.0, 90.0

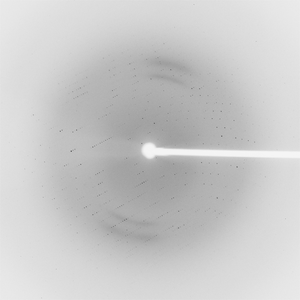

Dataset 127427_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 244.0
Wavelength [Å] 0.97917
Experiment Date 2009-07-09
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

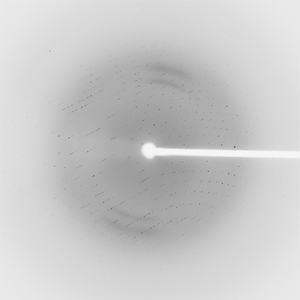

Dataset 127427_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 244.0
Wavelength [Å] 0.91837
Experiment Date 2009-07-09
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

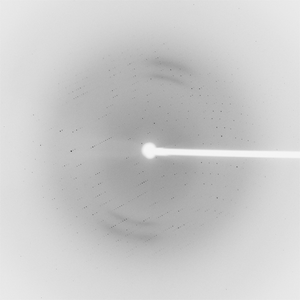

Dataset 127427_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 244.0
Wavelength [Å] 0.97870
Experiment Date 2009-07-09
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
