Diffraction project datasets MH5846C_3kgy

  • Method: MAD
  • Resolution: 1.5 Å
  • Space group: P 21 21 21
Download all images (3.3 GB)

PDB website for 3KGY
PDB validation report for 3KGY

doi:10.18430/M33KGY

Project details

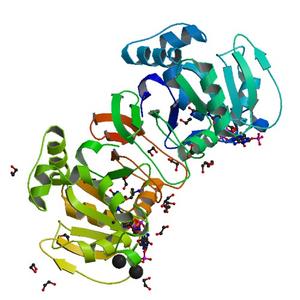

Title Crystal structure of Putative dihydrofolate reductase (YP_001636057.1) from CHLOROFLEXUS AURANTIACUS J-10-FL at 1.50 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.17
Unit cell edges [Å] 55.23 x 57.35 x 140.98
Unit cell angles [°] 90.0, 90.0, 90.0

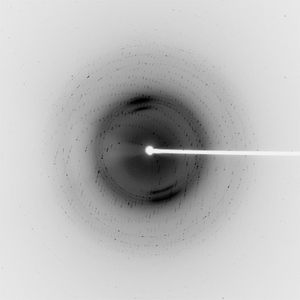

Dataset 126079_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 68.0
Wavelength [Å] 0.97922
Experiment Date 2009-07-08
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

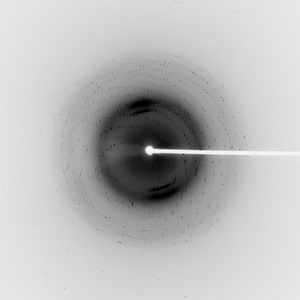

Dataset 126079_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 68.0
Wavelength [Å] 0.91837
Experiment Date 2009-07-08
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

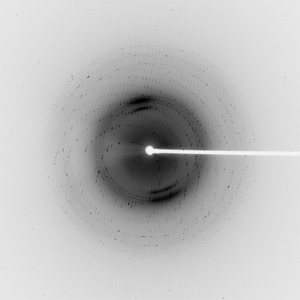

Dataset 126079_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 68.0
Wavelength [Å] 0.97876
Experiment Date 2009-07-08
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
