Diffraction project datasets MH5158B_3hc1

  • Method: MAD
  • Resolution: 1.9 Å
  • Space group: P 1 21 1
Download all images (6.0 GB)

PDB website for 3HC1
PDB validation report for 3HC1

doi:10.18430/M33HC1

Project details

Title Crystal structure of HDOD domain protein with unknown function (NP_953345.1) from GEOBACTER SULFURREDUCENS at 1.90 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.23
Unit cell edges [Å] 47.57 x 66.63 x 54.41
Unit cell angles [°] 90.0, 112.0, 90.0

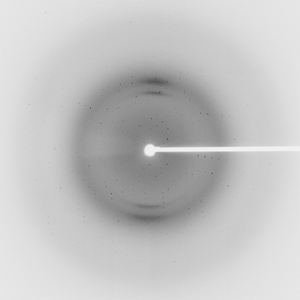

Dataset 113488_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 270.0
Oscillation width [°] 1.00
Phi [°] 182.0
Wavelength [Å] 0.97932
Experiment Date 2009-03-19
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

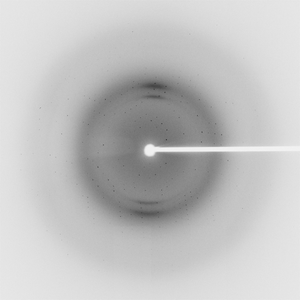

Dataset 113488_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 270.0
Oscillation width [°] 1.00
Phi [°] 182.0
Wavelength [Å] 0.91837
Experiment Date 2009-03-19
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

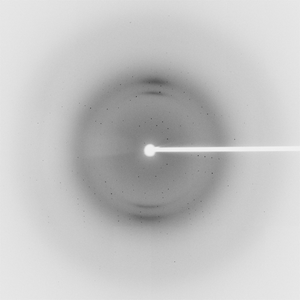

Dataset 113488_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 270.0
Oscillation width [°] 1.00
Phi [°] 182.0
Wavelength [Å] 0.97911
Experiment Date 2009-03-19
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
