Diffraction project datasets MH15503A_3htv

  • Method: MAD
  • Resolution: 1.95 Å
  • Space group: C 2 2 21
Download all images (3.7 GB)

PDB website for 3HTV
PDB validation report for 3HTV

doi:10.18430/M33HTV

Project details

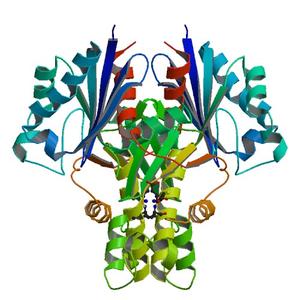

Title Crystal structure of D-allose kinase (NP_418508.1) from ESCHERICHIA COLI K12 at 1.95 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.24
Unit cell edges [Å] 46.72 x 101.39 x 131.46
Unit cell angles [°] 90.0, 90.0, 90.0

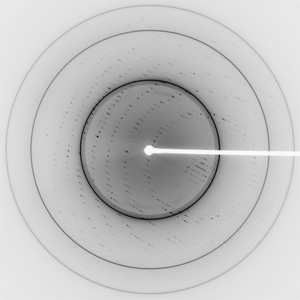

Dataset 115496_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 150.0
Wavelength [Å] 0.97910
Experiment Date 2009-03-26
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

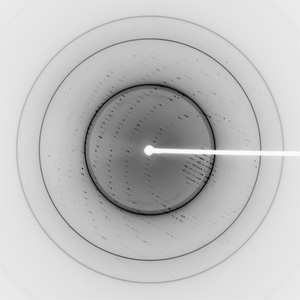

Dataset 115496_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 150.0
Wavelength [Å] 0.91837
Experiment Date 2009-03-26
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

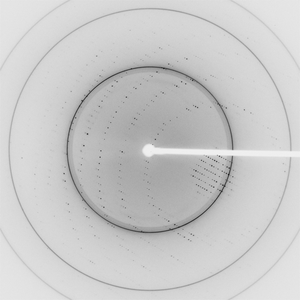

Dataset 115496_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.1
Oscillation width [°] 1.00
Phi [°] 150.0
Wavelength [Å] 0.91837
Experiment Date 2009-03-27
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
