Diffraction project datasets MH15483A_3nqn

  • Method: MAD
  • Resolution: 1.88 Å
  • Space group: P 43 21 2
Download all images (6.8 GB)

PDB website for 3NQN
PDB validation report for 3NQN

doi:10.18430/M33NQN

Project details

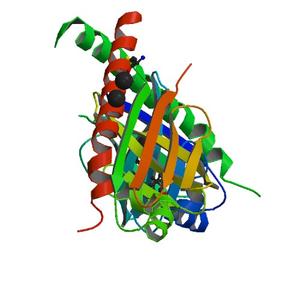

Title Crystal structure of a Protein with unknown function. (DR_2006) from DEINOCOCCUS RADIODURANS at 1.88 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.24
Unit cell edges [Å] 53.51 x 53.51 x 223.75
Unit cell angles [°] 90.0, 90.0, 90.0

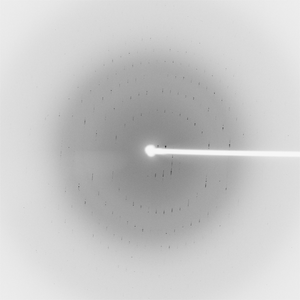

Dataset 136609_1_E1_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 320.0
Oscillation width [°] 0.50
Phi [°] 316.0
Wavelength [Å] 0.97925
Experiment Date 2009-12-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

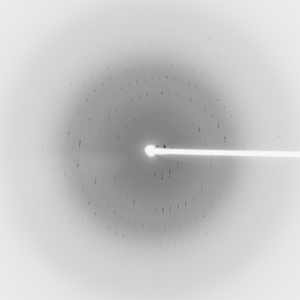

Dataset 136609_1_E2_####.mccd details

Number of frames 167 (1 - 167)
Distance [mm] 320.0
Oscillation width [°] 0.50
Phi [°] 316.0
Wavelength [Å] 0.91837
Experiment Date 2009-12-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

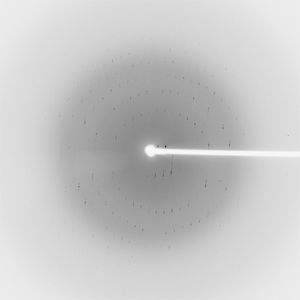

Dataset 136609_2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 320.0
Oscillation width [°] 0.50
Phi [°] 316.0
Wavelength [Å] 0.97883
Experiment Date 2009-12-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
