Diffraction project datasets MH15465B_3mcq
Project details
| Title |

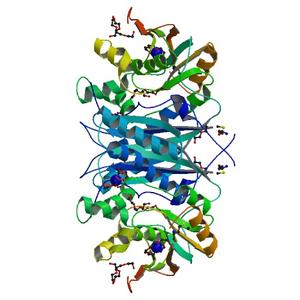

Crystal structure of Thiamine-monophosphate kinase (Mfla_0573) from METHYLOBACILLUS FLAGELLATUS KT at 1.91 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.20 / 0.23 |
| Unit cell edges [Å] |
59.22 x
59.22 x
159.77
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

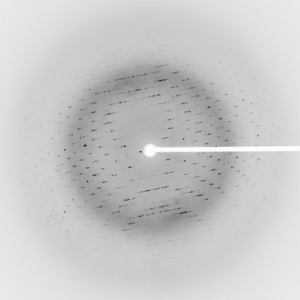

Dataset 135840_1_E1_####.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
178.0 |
| Wavelength [Å] |
0.97951 |
| Experiment Date |
2009-11-06 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

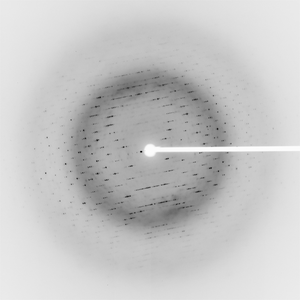

Dataset 135840_1_E2_####.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
178.0 |
| Wavelength [Å] |
0.91162 |
| Experiment Date |
2009-11-06 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

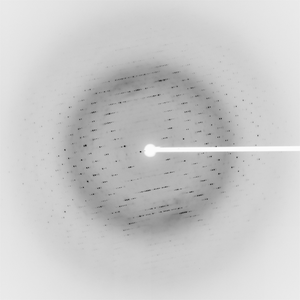

Dataset 135840_2_####.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
178.0 |
| Wavelength [Å] |
0.97936 |
| Experiment Date |
2009-11-06 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
Dataset 135840_3_####.mccd details
| Number of frames |
21 (1 - 21) |
| Distance [mm] |
400.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
178.0 |
| Wavelength [Å] |
0.91162 |
| Experiment Date |
2009-11-06 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

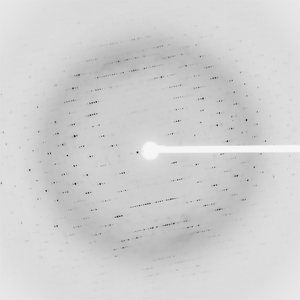

Dataset 135840_4_####.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
400.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
178.0 |
| Wavelength [Å] |
0.91162 |
| Experiment Date |
2009-11-06 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
