Diffraction project datasets MH15448F_3hi0

  • Method: MAD
  • Resolution: 2.3 Å
  • Space group: P 21 21 21
Download all images (13.6 GB)

PDB website for 3HI0
PDB validation report for 3HI0

doi:10.18430/M33HI0

Project details

Title Crystal structure of Putative exopolyphosphatase (17739545) from AGROBACTERIUM TUMEFACIENS str. C58 (Dupont) at 2.30 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.23
Unit cell edges [Å] 56.33 x 66.30 x 329.65
Unit cell angles [°] 90.0, 90.0, 90.0

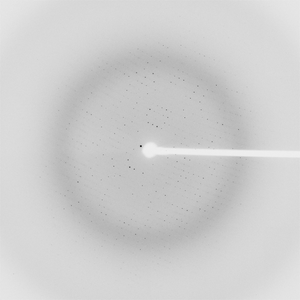

Dataset 109781_1_E1_###.mccd details

Number of frames 450 (1 - 450)
Distance [mm] 350.0
Oscillation width [°] 0.20
Phi [°] 270.0
Wavelength [Å] 0.97895
Experiment Date 2009-02-23
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

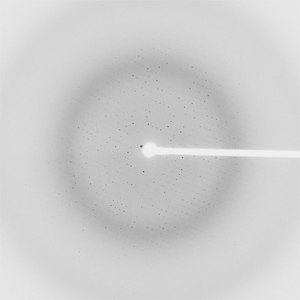

Dataset 109781_1_E2_###.mccd details

Number of frames 450 (1 - 450)
Distance [mm] 350.0
Oscillation width [°] 0.20
Phi [°] 270.0
Wavelength [Å] 0.91837
Experiment Date 2009-02-23
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

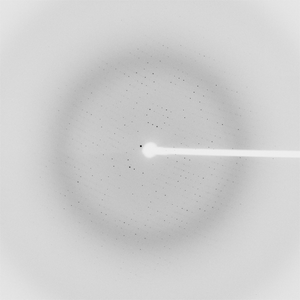

Dataset 109781_2_###.mccd details

Number of frames 450 (1 - 450)
Distance [mm] 350.0
Oscillation width [°] 0.20
Phi [°] 270.0
Wavelength [Å] 0.97835
Experiment Date 2009-02-23
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
