Diffraction project datasets MH11753H_3hm4
- Method: MAD
- Resolution: 1.3 Å
- Space group: P 21 21 21
PDB website for 3HM4
PDB validation report for 3HM4
doi:10.18430/M33HM4
Project details

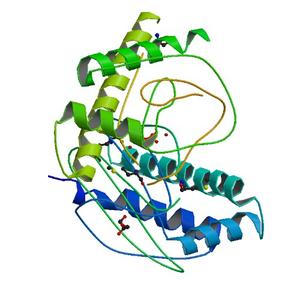

| Title | CRYSTAL STRUCTURE OF A CHEMOTAXIS PROTEIN CHEX (DDE_0281) FROM DESULFOVIBRIO DESULFURICANS SUBSP. AT 1.30 A RESOLUTION |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.14 / 0.17 |
| Unit cell edges [Å] | 42.36 x 74.00 x 83.34 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset 115442_1_E1_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 130.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 174.0 |
| Wavelength [Å] | 0.97932 |
| Experiment Date | 2009-03-19 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

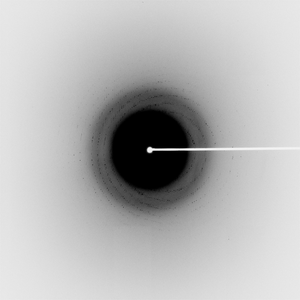

Dataset 115442_1_E2_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 130.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 174.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2009-03-19 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
