Diffraction project datasets MH11753F_3iic
- Method: SAD
- Resolution: 2.13 Å
- Space group: P 21 21 21
PDB website for 3IIC
doi:10.18430/M33IIC
Project details

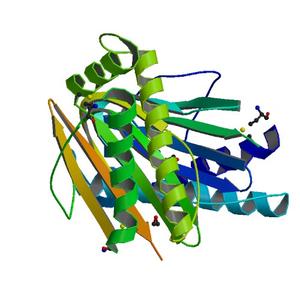

| Title | Crystal structure of CheC-like superfamily protein (YP_001095400.1) from Shewanella SP. PV-4 at 2.13 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| R / Rfree | 0.21 / 0.26 |
| Unit cell edges [Å] | 43.65 x 52.08 x 134.43 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

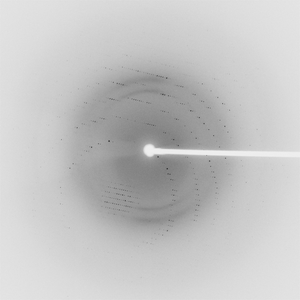

Dataset 118334_1_###.mccd details
| Number of frames | 100 (1 - 100) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 96.0 |
| Wavelength [Å] | 0.97795 |
| Experiment Date | 2009-04-16 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
