Diffraction project datasets MH11753A_3h4y

  • Method: SAD
  • Resolution: 1.55 Å
  • Space group: P 41 21 2
Download all images (2.4 GB)

PDB website for 3H4Y

doi:10.18430/M33H4Y

Project details

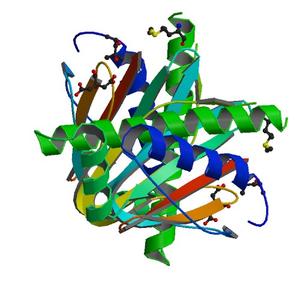

Title Crystal structure of putative chemotaxis protein (YP_009526.1) from DESULFOVIBRIO VULGARIS HILDENBOROUGH at 1.55 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.16 / 0.20
Unit cell edges [Å] 43.82 x 43.82 x 158.60
Unit cell angles [°] 90.0, 90.0, 90.0

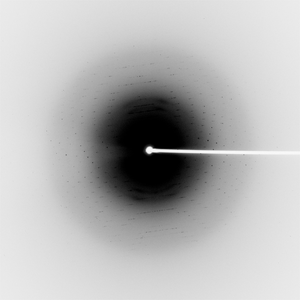

Dataset 115274_1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 29.0
Wavelength [Å] 0.97904
Experiment Date 2009-03-26
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

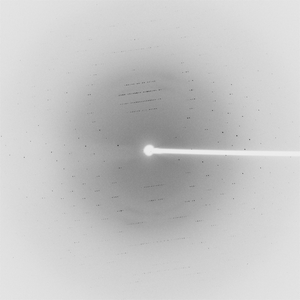

Dataset 115274_2_###.mccd details

Number of frames 110 (1 - 110)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 29.0
Wavelength [Å] 0.97904
Experiment Date 2009-03-26
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
