Diffraction project datasets MH11107A_4lqx
Project details
| Title |

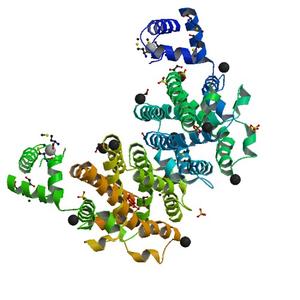

Crystal structure of a TENA/THI-4 domain-containing protein (SSO2700) from Sulfolobus solfataricus P2 at 2.34 A resolution |
| Authors |
JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG) |
| R / Rfree |
0.17 / 0.22 |
| Unit cell edges [Å] |
69.40 x
96.58 x
116.83
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

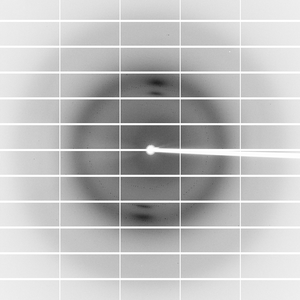

Dataset 156425_1_E1_#####.cbf details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
137.0 |
| Wavelength [Å] |
0.97871 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

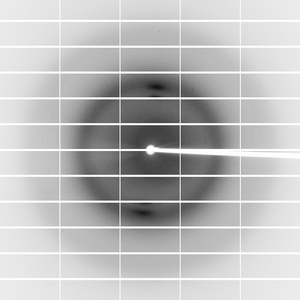

Dataset 156425_1_E2_#####.cbf details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
137.0 |
| Wavelength [Å] |
0.91837 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
