Diffraction project datasets MH10810A_3mvu

  • Method: MAD
  • Resolution: 1.8 Å
  • Space group: P 42 21 2
Download all images (3.6 GB)

PDB website for 3MVU
PDB validation report for 3MVU

doi:10.18430/M33MVU

Project details

Title Crystal structure of a TenA family transcription regulator (TM1040_3656) from SILICIBACTER SP. TM1040 at 1.80 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.18
Unit cell edges [Å] 65.32 x 65.32 x 107.08
Unit cell angles [°] 90.0, 90.0, 90.0

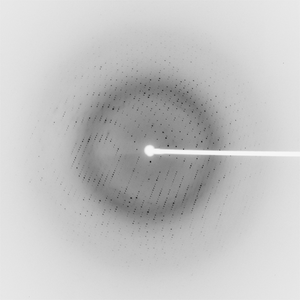

Dataset 122867_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 13.0
Wavelength [Å] 0.97935
Experiment Date 2009-06-12
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

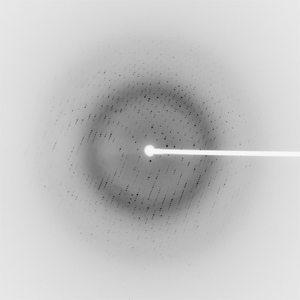

Dataset 122867_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 13.0
Wavelength [Å] 0.91837
Experiment Date 2009-06-12
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

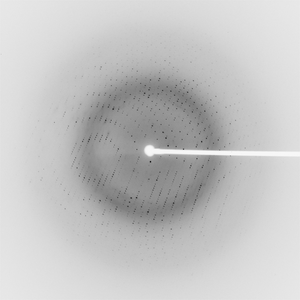

Dataset 122867_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 13.0
Wavelength [Å] 0.97882
Experiment Date 2009-06-12
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
