Diffraction project datasets MH10766D_3iup

  • Method: MAD
  • Resolution: 1.7 Å
  • Space group: P 1 21 1
Download all images (16.2 GB)

PDB website for 3IUP

doi:10.18430/M33IUP

Project details

Title Crystal structure of Putative NADPH:quinone oxidoreductase (YP_296108.1) from RALSTONIA EUTROPHA JMP134 at 1.70 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 60.48 x 77.93 x 85.45
Unit cell angles [°] 90.0, 109.2, 90.0

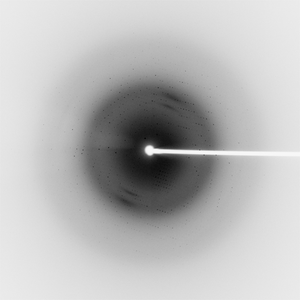

Dataset 118040_1_E1_###.mccd details

Number of frames 400 (1 - 400)
Distance [mm] 225.0
Oscillation width [°] 0.45
Phi [°] 114.0
Wavelength [Å] 0.97848
Experiment Date 2009-04-17
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 118040_1_E2_###.mccd details

Number of frames 400 (1 - 400)
Distance [mm] 225.0
Oscillation width [°] 0.45
Phi [°] 114.0
Wavelength [Å] 0.91837
Experiment Date 2009-04-17
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 118040_2_###.mccd details

Number of frames 400 (1 - 400)
Distance [mm] 225.0
Oscillation width [°] 0.45
Phi [°] 114.0
Wavelength [Å] 0.97790
Experiment Date 2009-04-17
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
