Diffraction project datasets MH10766A_3pi7

  • Method: MAD
  • Resolution: 1.71 Å
  • Space group: C 1 2 1
Download all images (26.3 GB)

PDB website for 3PI7
PDB validation report for 3PI7

doi:10.18430/M33PI7

Project details

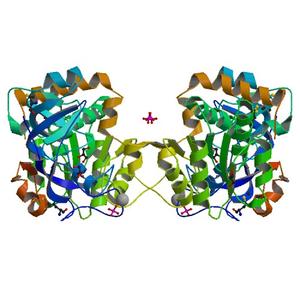

Title Crystal structure of a putative NADPH:quinone reductase (mll3093) from Mesorhizobium loti at 1.71 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 140.30 x 39.97 x 56.17
Unit cell angles [°] 90.0, 90.3, 90.0

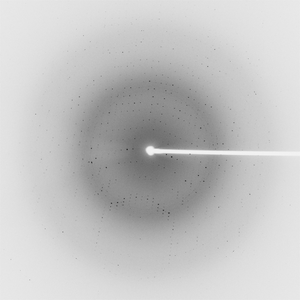

Dataset 131780_1_E1_####.mccd details

Number of frames 520 (1 - 520)
Distance [mm] 250.0
Oscillation width [°] 0.25
Phi [°] 160.0
Wavelength [Å] 0.97925
Experiment Date 2009-12-02
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

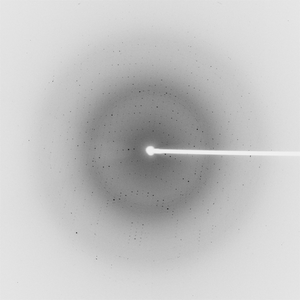

Dataset 131780_1_E2_####.mccd details

Number of frames 520 (1 - 520)
Distance [mm] 250.0
Oscillation width [°] 0.25
Phi [°] 160.0
Wavelength [Å] 0.91837
Experiment Date 2009-12-02
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

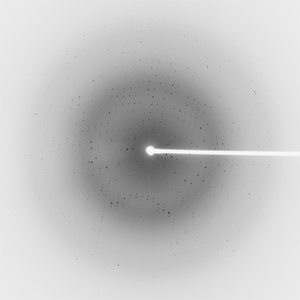

Dataset 131780_2_####.mccd details

Number of frames 520 (1 - 520)
Distance [mm] 250.0
Oscillation width [°] 0.25
Phi [°] 160.0
Wavelength [Å] 0.97864
Experiment Date 2009-12-02
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

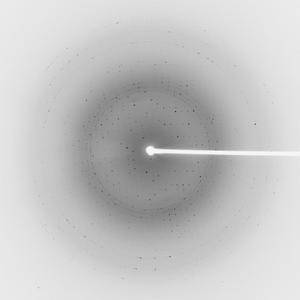

Dataset 131780_3_E1_####.mccd details

Number of frames 196 (1 - 196)
Distance [mm] 250.0
Oscillation width [°] 0.25
Phi [°] 291.0
Wavelength [Å] 0.97925
Experiment Date 2009-12-02
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

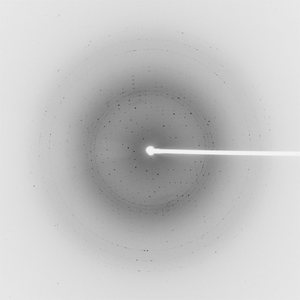

Dataset 131780_3_E2_####.mccd details

Number of frames 196 (1 - 196)
Distance [mm] 250.0
Oscillation width [°] 0.25
Phi [°] 291.0
Wavelength [Å] 0.91837
Experiment Date 2009-12-02
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

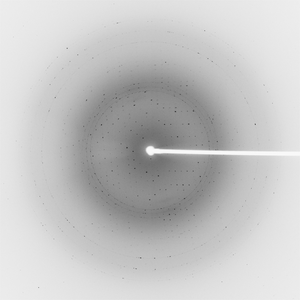

Dataset 131780_4_####.mccd details

Number of frames 196 (1 - 196)
Distance [mm] 250.0
Oscillation width [°] 0.25
Phi [°] 291.0
Wavelength [Å] 0.97864
Experiment Date 2009-12-02
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
