Diffraction project datasets MH10719B_3kiz

  • Method: MAD
  • Resolution: 1.5 Å
  • Space group: P 21 21 21
Download all images (6.2 GB)

PDB website for 3KIZ
PDB validation report for 3KIZ

doi:10.18430/M33KIZ

Project details

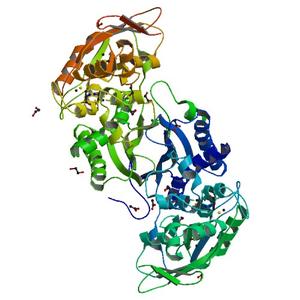

Title Crystal structure of Putative phosphoribosylformylglycinamidine cyclo-ligase (YP_676759.1) from CYTOPHAGA HUTCHINSONII ATCC 33406 at 1.50 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 70.93 x 95.18 x 106.28
Unit cell angles [°] 90.0, 90.0, 90.0

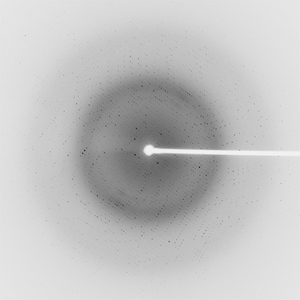

Dataset 116578_1_###.mccd details

Number of frames 119 (1 - 119)
Distance [mm] 245.0
Oscillation width [°] 0.50
Phi [°] 158.0
Wavelength [Å] 0.97916
Experiment Date 2009-03-27
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

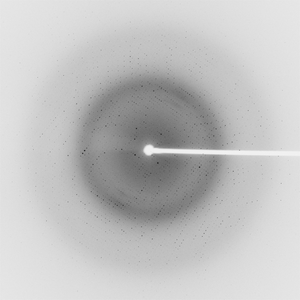

Dataset 116578_2_###.mccd details

Number of frames 240 (1 - 240)
Distance [mm] 245.0
Oscillation width [°] 0.50
Phi [°] 158.0
Wavelength [Å] 0.97908
Experiment Date 2009-03-27
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

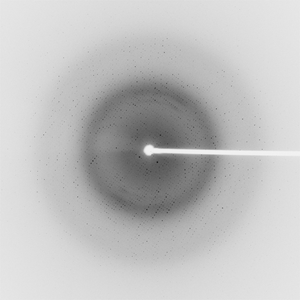

Dataset 116578_3_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 245.0
Oscillation width [°] 0.50
Phi [°] 158.0
Wavelength [Å] 0.91837
Experiment Date 2009-03-27
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
